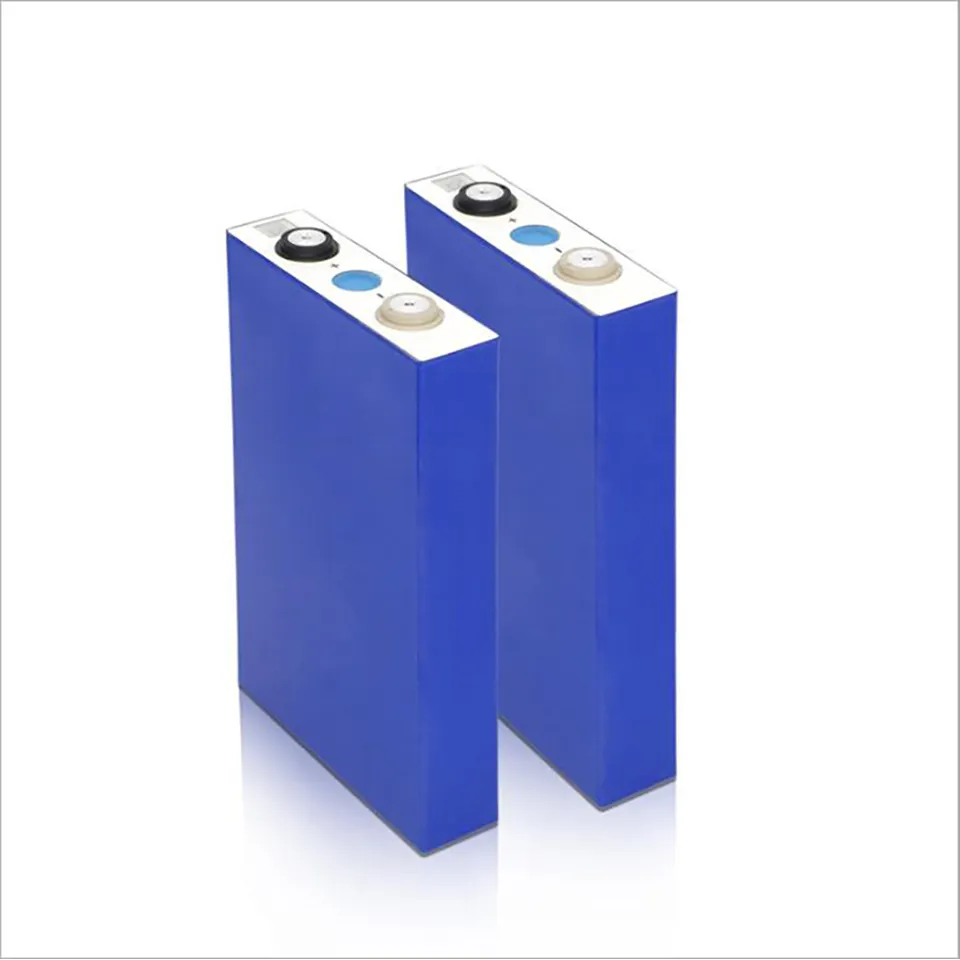

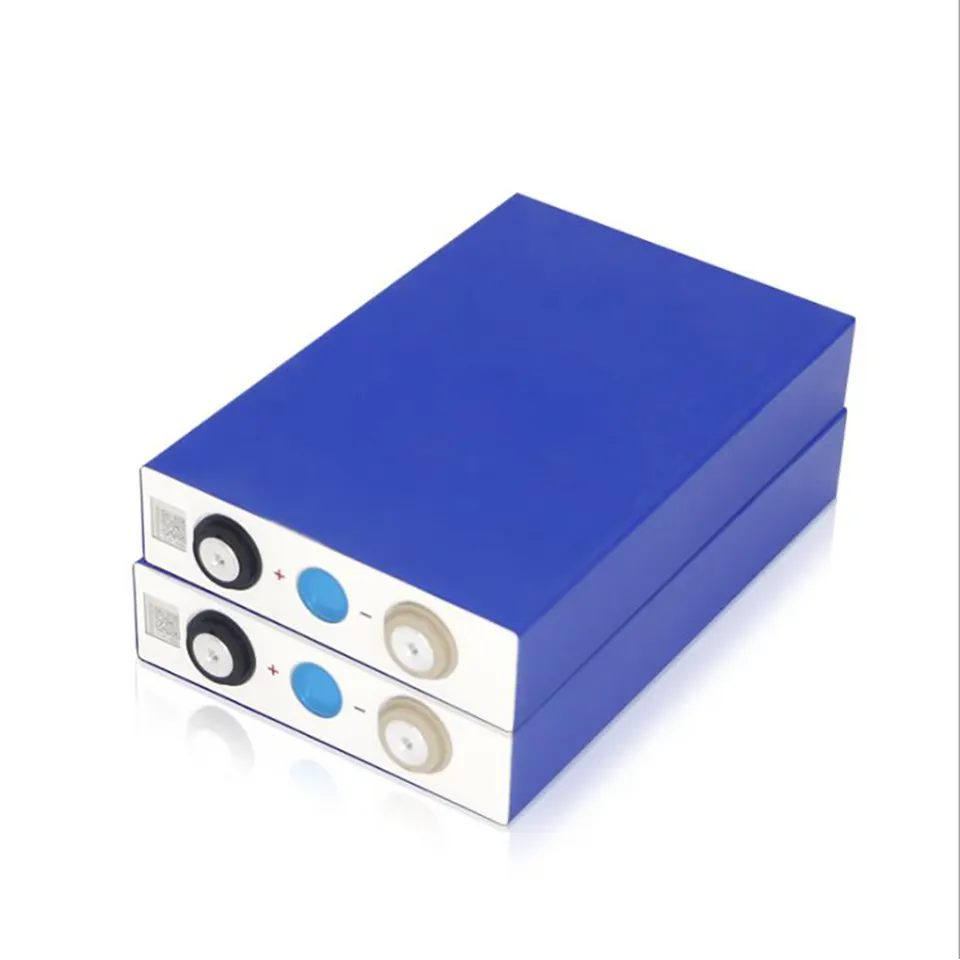

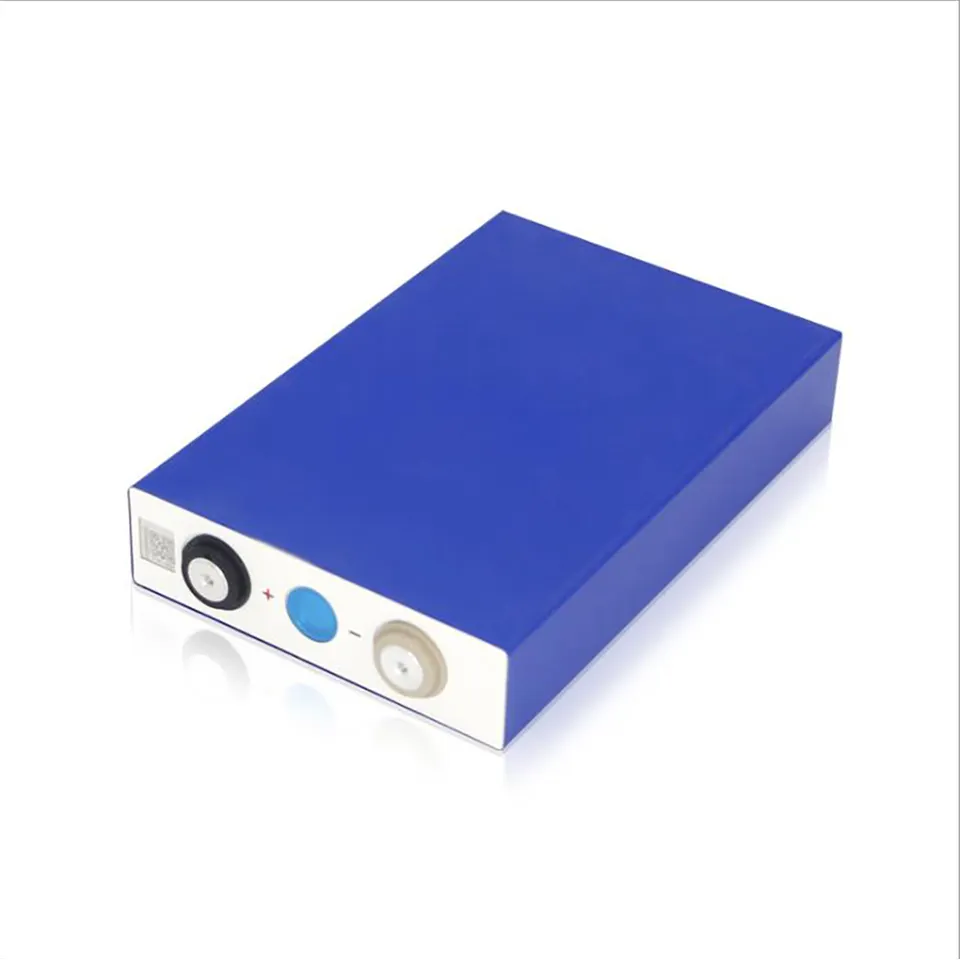

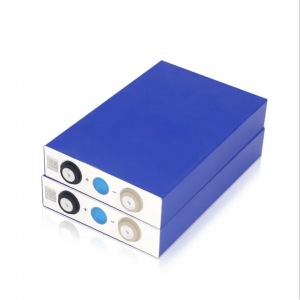

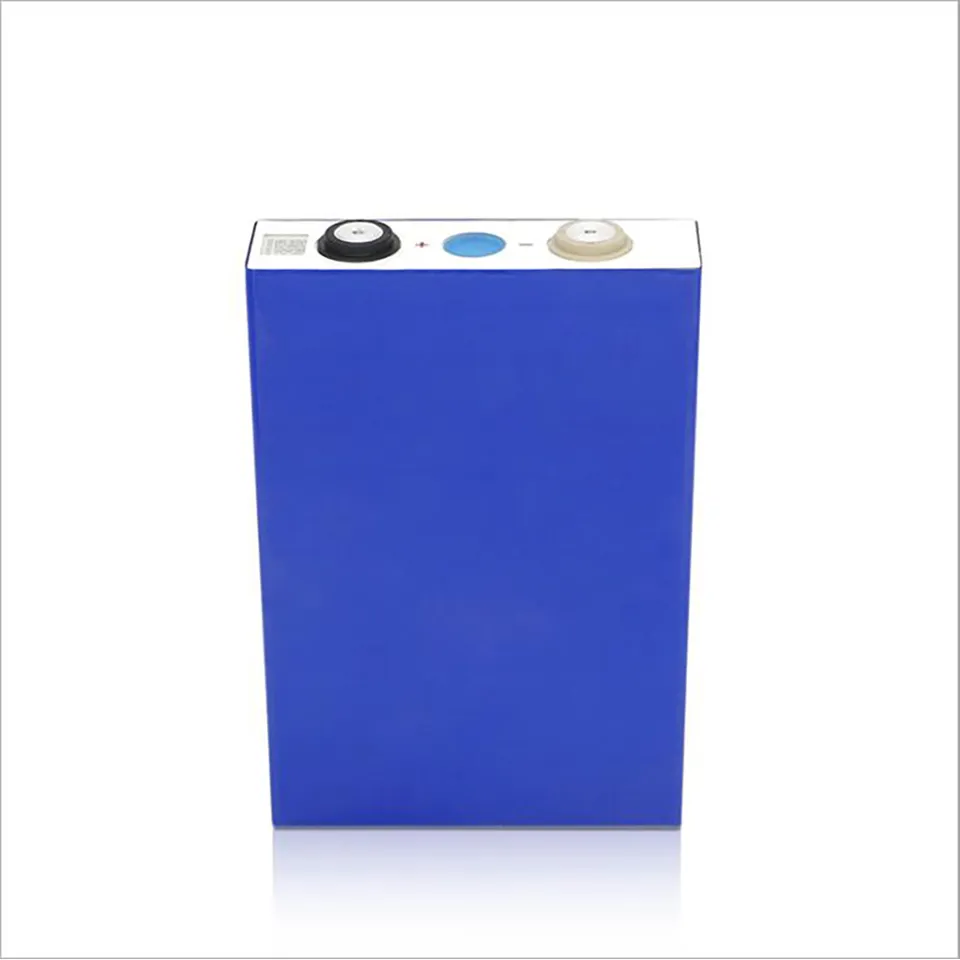

Prismatic Lifepo4 Battery 3.2V 90Ah

2023-06-13 02:44

规范

#	项目			参数	备注
1	标称容量			90Ah	(25±2)°C, Standard Charge And Discharge
2	Typical Voltage			3.2伏
3	AC Impedance Resistance(1KHz)			≤0.5mΩ
4	Standard Charge And Discharge	Charge/Discharge Current		1C/1C	(25±2)°C
		Cut Off Voltage Of Charge/Discharge		3.65V/2.5V
5	Maximum Charge/Discharge Current	Continuous Charge/Discharge		1C/1C	According to continuous/ pulse charge and discharge ammeters
		Pulse Charge/Discharge(30s)		3C/3C
6	Recommended Scope Of SOC			10%~90%	N.A
7	充电温度			0°C~55°C	According to continuous/ pulse charge and discharge ammeters
8	出料温度			-20°C~55°C
9	贮存温度		Short Term ( Within 1 month)	-20°C〜45°C	N.A
			Long Term ( Within 1 year)	0°C〜35°C
10	Storage Humidity Range			<95%
11	Self-discharge rate per month			≤3%/month	Temperature: (25±2)°C,Storage Scope Of SOC: 30%~50%SOC
12	尺寸		宽度	130.3±0.5mm	Refer to Appendix ǀ
13			Thickness( 30% SOC)	36.7±0.5毫米
14			High( Total)	200.5±0.5毫米
15			High（ Subject）	195.5±0.5毫米
16			Tabs Distance	67.0±1.0毫米
17	电池重量			1994±50g

Attentions

It is necessary to ensure that the voltage, current and temperature of the cell are monitored and protected when the cell is charged and discharged.
Please keep the cell away from heat source, fire source , strong acid, strong alkali and other corrosive environment.
Do not short connect or install the battery with incorrect polarity at any time.
Do not mix up with cells from different models or manufacturers.
Do not use external force to make the cell fall, impact, puncture, do not disassemble the cell or change the external structure.
Please keep the cell’s charge under 30% ~ 50%SOC, and avoid direct sunlight or high temperature and humidity environment when the battery is not used for a long time,
Please wear protective devices such as rubber gloves when operating the battery.

Please immediately stop using if there have leakage, smoking or damage with cell , and contact our company to deal with.

应用

我们的工厂

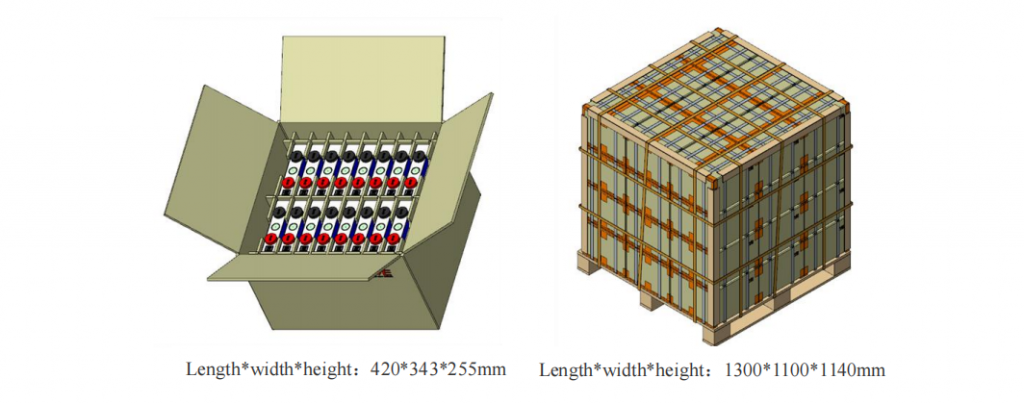

包装和运输

The cells should be packed into boxes under the charge of 30% ~ 50%SOC. During the transportation, they should be protected from severe vibration, shock , extrusion, sun or rain.

存储

Cells should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃, and charged and discharged every 6 months. Keep the last charge under 30% ～ 50%SOC.
