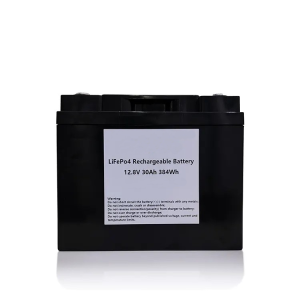

LiFePO4 Battery 12.8V 30Ah

2025-01-02 02:33

规范

电气特性	标称电压	12.8伏
	标称容量	30Ah @0.2C
	能源	384小时
	内部电阻	≤55mΩ
	循环寿命	>2000 cycles @ 0.2c charge/ discharge at 100%DOD,End of life 70%
	月 自放电	25℃每月≤3.5％
标准收费	充电电压	14.6±0.2伏
	Charge Mode ( CC/CV)	在0℃~45℃温度下，以0.2C5A的恒流充电至14.6v，然后以14.6v的恒压连续变化，直到电流不大于0.02C5A
	充电电流	5A
	最大充电电流	10A
标准排放	放电电流	30A
	最大持续电流	30A
	Max Plus Current	60A (<3S)
	Discharge Cut-off  Voltage	10.0伏
环境的	充电温度	0℃～45℃
	放电温度	-20℃至60℃
	贮存温度	0℃～45℃
	防水防尘	IP55
机械	Cell& Method	IFR32700 N34,4S5P
	塑料外壳	ABS
	尺寸（长*宽*高*高）	195*130*156*167mm
	重量	大约4.9KG
	终奌站	M6

应用

1）太阳能，家用，电动汽车产品。

2)Widely applied in solar street light,wind energy storage ,UPS and telecommunication power supply, photovoltaic power station etc.

我们的工厂

为什么选择我们

【High-quality battery cell】: Adopts high-quality A-grade battery cell, full capacity without false labeling to support the test

【Competitive price】: 500,000+ pieces produced annually, branded battery source production factory with competitive price

【Wide range of products】: Lead acid replacement battery, Rack mount battery, Wall-mounted energy storage, Stacked batteries....



包装与运输

常问问题

Q1：我可以测试样品吗？样品订单的交货时间是多少？
A1: Yes,we can supply samples in 5-7 days depending on different product items and clients' requirement. For normal in stock
product,2~5 days; For customized product,3~7days depends on requirements.

Q2：产品的保修是什么？
A2: 1~10 years,Since our product range is wide,Minimum 12v 30Ah, Max 2MW container energy storage system,Different products has different warranty,welcome to check before placing order.

Q3：贵公司的优势是什么？
A3: We're direct factory,have very rich experience in customizing kinds of high voltage,high capacity,high performance battery packs for 12v/24v/48v/80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V/460V/614V Aircraft tractors,heavy truck, Mine train,110v/220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.

问题4：您接受OEM / ODM吗？
A4: Yes,welcome!

Q5：批量订单的交货时间是什么？
A5: Generally speaking,about 7~20 days depending on different items after getting down payment and confirmation about the samples.

Q6：付款条件是什么？
A6: Sample payment accept Paypal,Western union, Escrow;and Mass order by T/T.

Q7：可以提供哪种证书？
A7: CE,RoHS,UN38.3,MSDS,etc,If need IEC,PSE and others, please consult with us.
