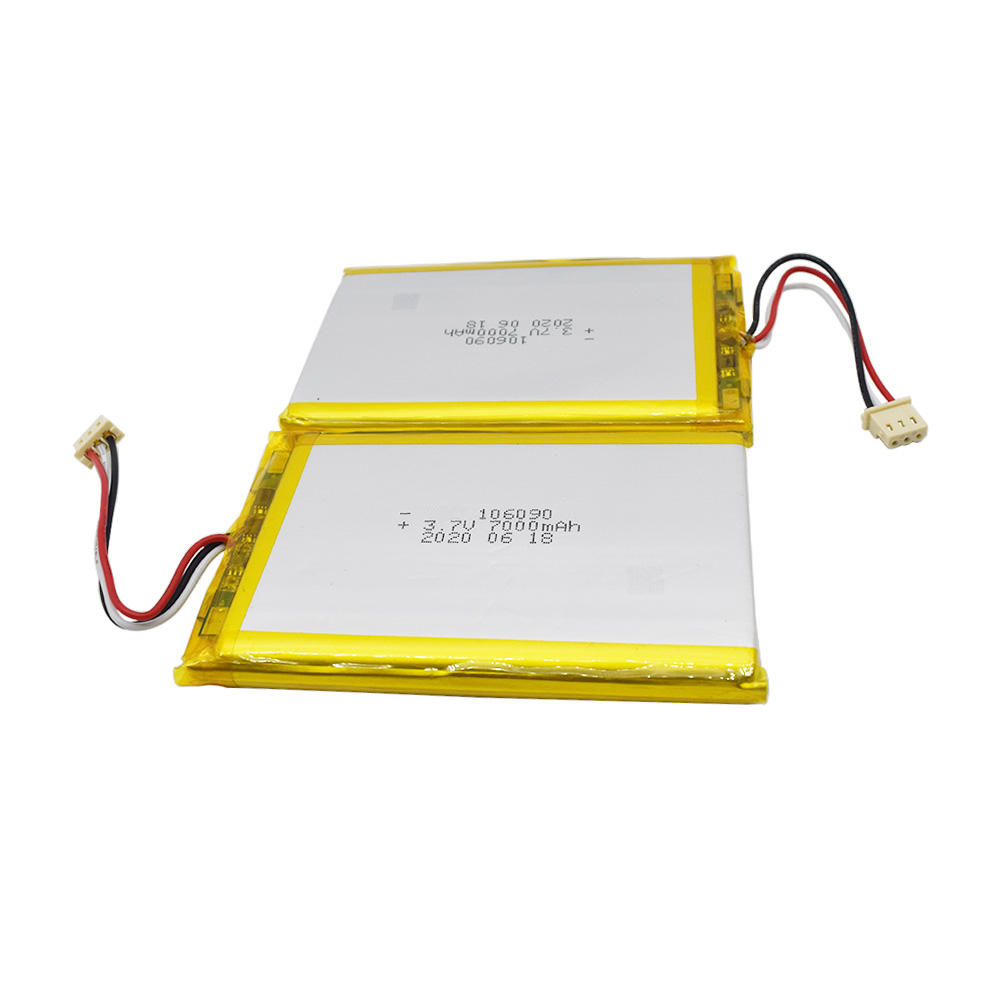

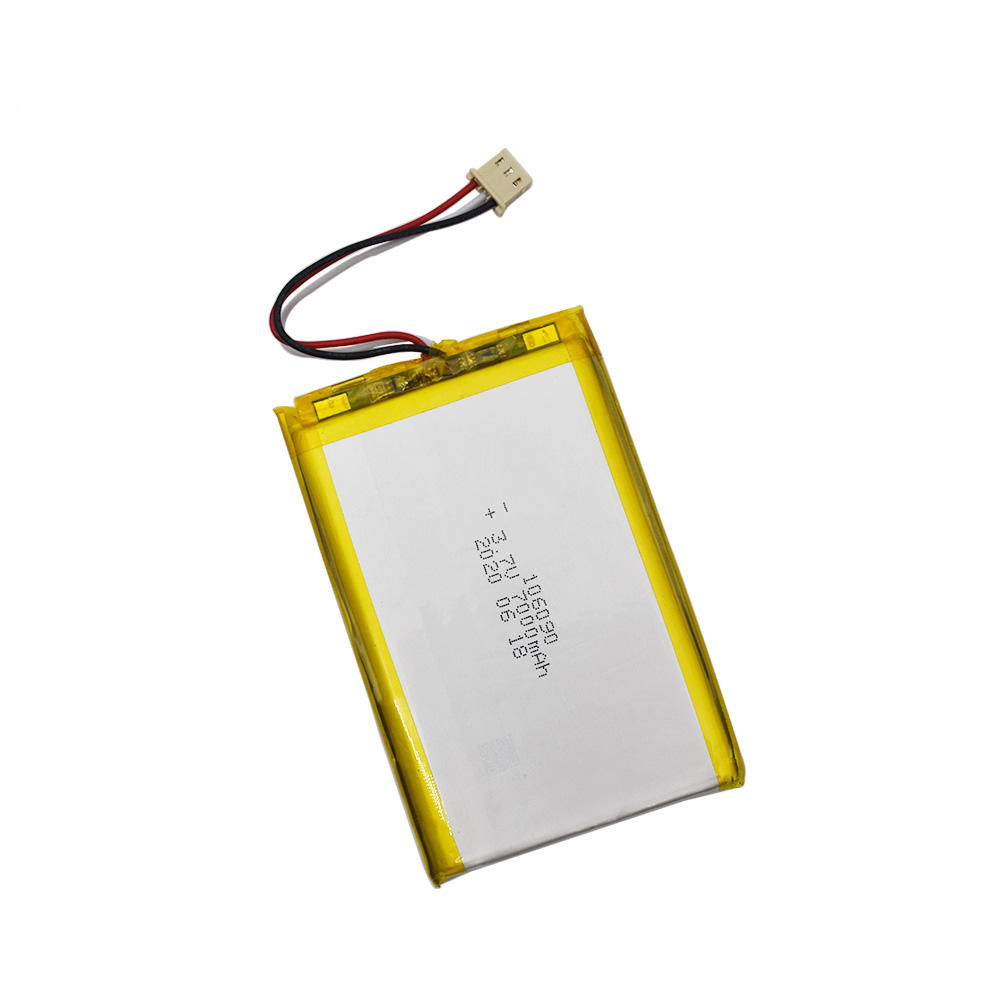

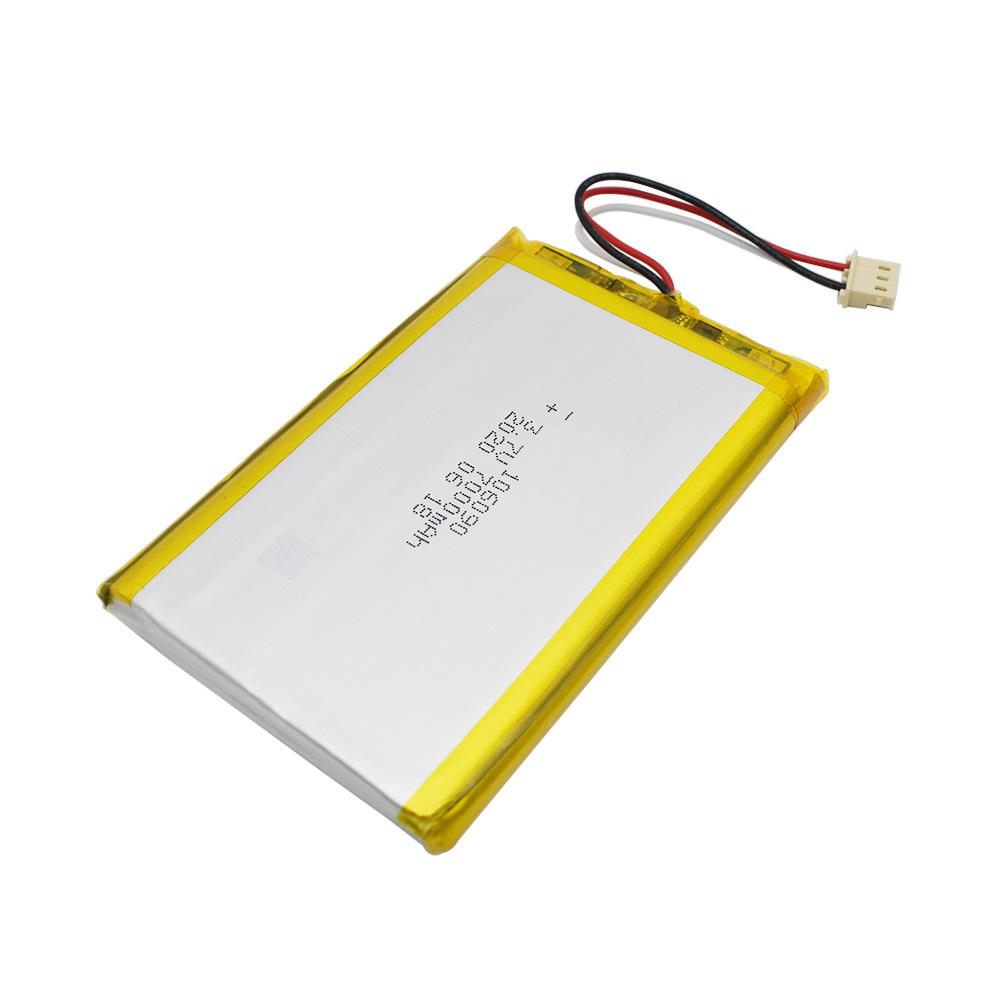

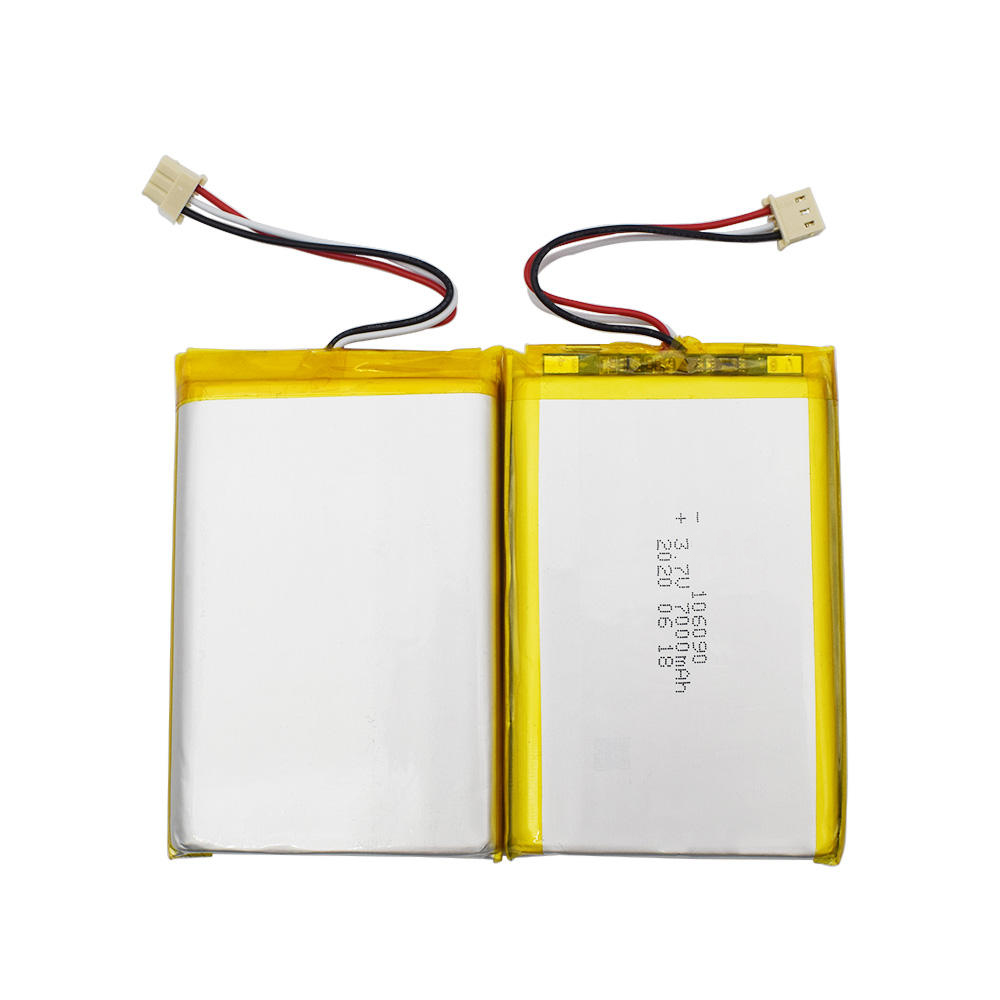

LiPO Battery 106090

2026-07-06 09:04

规范

物品参数
Battery modelAIN106090
标称电压3.7伏
最小容量7000mAh
充电电压4.2伏
放电截止电压3.0伏
标准充电0.2度/4.2V
Max charging1.0C /4.2伏
Standard discharging0.2C / 3.0V
Max discharging



continuous discharge1.0C / 3.0V
non-continuous discharge2.0C / 3.0V
发货电压≥3.85V
Battery pack impedance
工作温度



充电:0°C〜45°C
Discharging: -20°C ~60°C
Storage (At 50% SOC and specified temp,
recoverable capacity in % vs time )


-10℃~25℃ (12 months ≥85% )



-10℃ ~45℃ (6 months ≥85% )



-10℃~55℃ (1 month ≥90% )

推荐的存储温度为20±5℃
视力检查There should not be any remarkable scratches, cracks,
bolts, cauterization, deformations, swelling, leakage
and so on the surface of the cell.

特征
1. High density of energy
2.环保
3. Long cycle life, chargeable up to 500 times
4. Low internal resistance
5. Short-circuit production function, safe and reliable
6. Good consistency, low self-discharge
7. Can be customized numerous sizes
8. Wide application for electronics and industry

we promise
1.所有产品出厂前都会经过100%的测试,以确保产品没有任何质量问题。
2.我们保证自收到货物之日起12个月内,我们将不包括人为损坏。如有质量问题,我们将提供退货服务。

客户服务
1.OEM ODM service is acceptable.
2.最大订购量为1000pcs,样品费可退还。

应用

我们的工厂

We can provide you with customized services.

Customized different voltage and capacity lithium polymer battery.

The capacity and dimension can customize according to your request

1.定制电池尺寸和外壳材料。
2.Customized protection board charging and discharging current.
3.定制连接插头插座、连接线。



包装和运输

Shipping optionsRecommend交货时间






Express

DHLwidely recommend3-7 business days
UPSwidely recommend3-7 business days
FEDEXrecommend5-7 business days
TNTrecommend5-7 business days
EMSwidely recommend5-10 business days
Post mailfor sample order7-60 business days
Airfreightfor sample order5-7 business days
By seafor sample order7-35 business days

常问问题

1,Q:ALL IN ONE的主要产品是什么?
答:可充电电池。锂离子,锂电池和动力电池组。

2,问:什么是超额收费?
A: 充电后,测试电池的初始状态和容量。以 3C 电流充电至 10.0V,然后以 CV 模式充电至 0.01C。
观察电池外观变化。

3,问:什么是过放电?
A: 充电后,测试电池的初始状态。电池正常时,以0.5C放电至0V。观察变化
电池外观。

4.问:我可以订购样品吗?
答:是的,我们接受样品订单以测试和检查质量。可以根据需要制造电池。

5.问:您有起订量限制吗?
答:是的,我们有批量生产的起订量限制,但取决于电池型号。请联系我们。

6.问:交货时间如何?
答:样品需要5到7个工作日。批量生产将需要25-30天。这取决于数量。

7.问:运输和交货时间如何?
A: 通常,电池将通过快递运输,例如 DHL、TNT、FedEx 和 UPS,交货时间为 3-5 个工作日。或 DDP
服务,交货时间为 11-15 个工作日。也可提供空运和海运。

8.问:售后服务如何?
答:我们将为您提供1年保修。如果有任何问题,请通知我们,我们将为您提供积极的解决方案。





注意: 我们是一家电池制造商。所有产品不支持零售,我们只做B2B业务,产品价格请联系我们!
