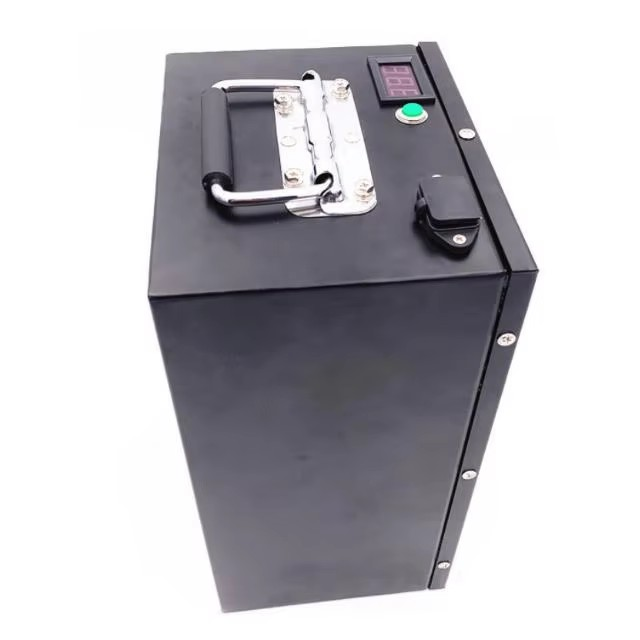

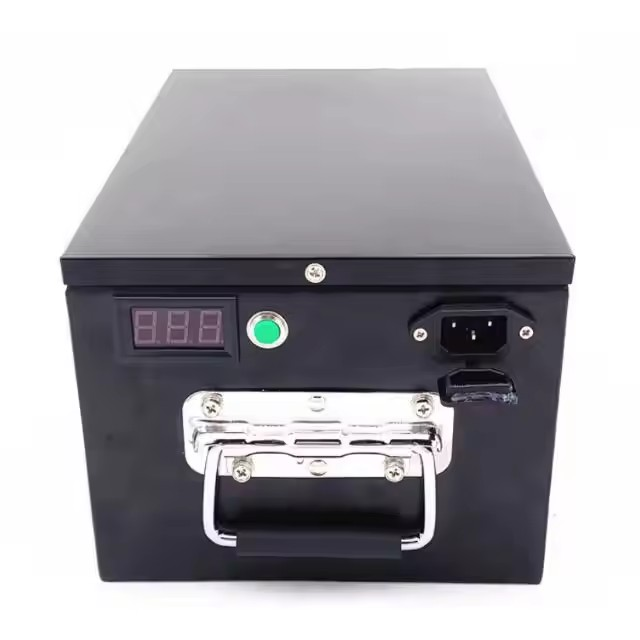

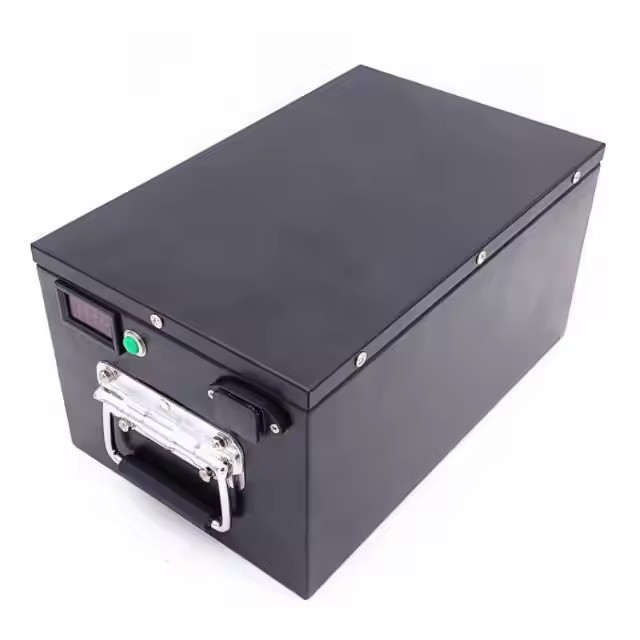

60V 100Ah LiFePO4 Lithium Ion Battery For AGV Smart Robot

2025-01-13 05:29

规范

项目	规范	注意
标称电压	60伏	Any voltage can be customized
Nominal Capacity:	100Ah	Any capacity can be customized
Discharge Cut-Off:	47.5伏
Charge Cut-Off:	69.3V
Charge Current:	30A	Free customization service
Cont. Discharge:	100A	Free customization service
Peak Discharge:	200A	Free customization service
阻抗：	≤200mΩ
Charge Temperature:	0℃ - 45℃
Discharge Temperature:	-20℃ - 60℃
Charge Method:	CC / CV
Life Cycle:	6000 times	80% DOD, Max. 100% DOD
BMS:	With BMS
尺寸：	Flexible	Any dimension can be customized
重量：	120KG

特征

• More than 6000 Cycles
  • Battery modules available for parallel and series for higher voltage and capacity
  • BMS Passive cell balance function
  • IP66, IP67, water proof, dust proof, Temperature monitoring
  • Customization for Size and Discharge and charge rate
  • Free of Maintenance, contains no poisonous material
  • No leakage, no hazardous chemistry
  • Quick delivery
  • Lighter in weight, smaller in size to save space.
  • Powerful to increase robust operation for your marine boat or RV
  • Fast charging and high power discharge rate available
  • No need to add water nor worry about maintenance.
  • We offer 5 years regular warranty and it can be extended up to 10 years.

内置BMS

项目	Content	Criterion
Over charge Protection	Over charge detection voltage	3.6~4.25V
	Over charge detection delay time	0.1 S ~ 6S
	Over charge release voltage	3.5~4.25V
Over discharge protection	Over discharge detection voltage	2.0~3.3V
	Over discharge detection delay time	0.1 S ~ 6S
	Over discharge release voltage	2.1~3.4V
收费 过流保护	Charge Over current detection current	1~100A
	Charge Over current detection delay time	0.02S~ 6S
卸货 Over current protection	Discharge Over current detection current	1~600A
	Discharge Over current detection delay time	0.02S~ 6S
短 protection	Short protection detection delay time	100 u S
	Detection condition	B+ P-0.2 Omh
	restore	Cut off load
Interior Resistance	Main loop electrify resistance	2 OMh(50A)
Current consumption	Current consume in normal operation	1.5mA Type
Current consumption	Current consume in sleep operation	2 uA Type

Note BMS is customizable. More advanced functions available, such as Bluetooth, RS485, CAN, Autocratically Heating functions, High temperature shut off, Low temperature shut off, BMS protocol available etc. Contact us for more details!

LIFEPO4	外型尺寸	重量	with BMS	RS485/Bluetooth	Cycles	保证
60V 10AH	195*165*175mm	9.5kg	是	可用的	6000times	5years
60V 20AH	330*175*220mm	19公斤	是	可用的	6000times	5years
60V 30AH	407*175*235mm	25公斤	是	可用的	6000times	5years
60V 40AH	407*175*235mm	28公斤	是	可用的	6000times	5years
60V 50AH	525*240*215mm	44kg	是	可用的	6000times	5years
60V 120AH	420*360*550mm	84kg	是	可用的	6000times	5years
60V 200AH	1000*600*182mm	156kg	是	可用的	6000times	5years

Self-heated Function (Optional)
To relieve winter range anxiety in some freezing environment, the BMS can bring with
self heating function. Resistance heating rapidly warms the inside of battery.
Start heating temperature:≤0°C. Stop heating temperature:≥10°C.
Can improve battery charge / discharge performance.

应用

我们的工厂

ALL IN ONE is a lithium battery Manufacturer for over 15 years, recognized by customers from

Australia,Europe and North America.We offer Top quality with very good price for lithium lifepo4 batteries!



常问问题

1.问：你们支持样品订单吗？

答：是的，欢迎订购样品，我们在美国和欧洲都有仓库，一些样品可以快速发货。

2.问：该产品有内置BMS吗？

答：是的，内置智能 BMS 包括 JBD/PACE/SmarTec，以确保电池得到智能管理。

3.Q: Can your company accept customized order ?

答：当然，定制是我们的强项。

4.问：电池组能与市场上的逆变器兼容吗？

答：是的，先生，我们的电池组与市场上 20 多个逆变器品牌兼容，包括 Victron、Goodwe、Solis、Growatts、Voltronics、Deye 和其他知名品牌。

5.问：保修如何？

A: 5 years upto its usage.

6.问：你们有任何认证吗？

A: CE, UN38.3 and MSDS, Pack UL1973 is under processing.

7.问：送货方式和时间如何？

A: 30-50 days for customized order. Monthly production capacity 6x40HQ for standard models.

8.问：你们有真正的工厂吗？

A: Yes, our factory is in Anhui. We welcome you to visit our factory.
