48v 100ah 200ah批发家用混合动力壁挂式储能可充电太阳能锂lifepo4电池组

2023-08-18 06:01

规范

型号	AIN HP5.1L-A1	AIN HP7.6L-A1	AIN HP10.2L-A1
Nominal Parameters
电压	48/51.2V	48/51.2V	48/51.2V
容量	100Ah	150Ah	200Ah
能源	5.12kwh	7.68kwh	10.24kwh

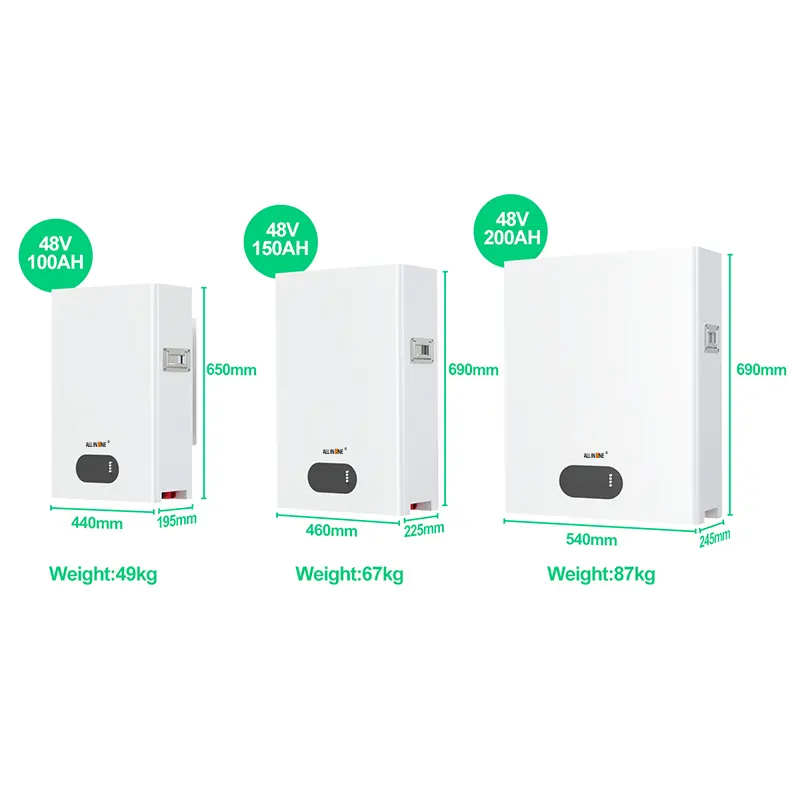

Dimensions (L xWxH)	440x695x195mm	460x690x225mm	540x690x245mm
重量	49kg	67kg	87kg
基本参数
Life Times (25C)	20 Years	20 Years	20 Years
Life Cycles (80% DOD, 25°C)	5000 Cycles	5000 Cycles	5000 Cycles
Storage Time /Temperature	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C
工作温度	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity
贮存温度	0°C 至 45°C @60+/-25% 相对湿度	0°C 至 45°C @60+/-25% 相对湿度	0°C 至 45°C @60+/-25% 相对湿度
锂电池标准	1EC62619 (Cell&Pack), CE, CEC, RCM, UN38.3
Enclosure Protection Rating	IP31Rating
Electrical Parameter
Operation Voltage	40-57.6Vdc	40-57.6Vdc	40-57.6Vdc
Max charging Voltage	58Vdc	58Vdc	58Vdc
Max charging and Dis charging Current	100A	150A	200A
最大功率	5120W	7680W	10240W

我们的工厂

ALL IN ONE is a professional manufacturer engaged in R&D and manufacturing of clean energy, the main products include Lithium iron battery pack for 48V and high-volt solar system photovoltaic solar off-grid inverter, photovoltaic solar controller, transformers.Guangdong Eco-contain New Energy Co.,Ltd is a global clean energy solution service provider. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world. With strict Quality control system, we have obtained CE, MSDS, UN38.3 and so on, our batteries are sold all over the world and enjoy very good reputation in more than 40 Countries such as USA, Canada, Jamaica, UK, Germany, France, Netherlands, Belgium, Finland, Denmark, Switzerland, Australia, New Zealand, Colombia, South Korea, Japan, India, Nepal and so on.

常问问题

问：您是贸易公司还是制造商？
A: We are ALL IN ONE original factory.

问：我可以提供样品进行测试吗？样品订单的交货时间是多少？
A: Yes,we can supply samples,the lead time for samples is 3-5 days.and buyer pay for sample cost and shipping cost.

问：您提供售后服务吗？
答：是的，保修期为12个月，如果在此期间我们方面有任何质量问题，我们可以寄出新的作为替换。

问：您接受OEM / ODM吗？
答：可以。

问：您电池的实际容量是多少？
答：我们所有的A级电池均具有100％的全新和实际容量。

问：您拥有哪种证书？
答：如果您的订单量大，我们可以提供CE，ROHS，FCC，IEC62133，MSDS，UN38.3。

问：您有起订量吗？
A：没有限制。也欢迎小批量订购。数量更多，价格更优惠，我们将为您查询最优惠的价格。

问：您的付款条件是什么？
答：我们采用电汇，Paypal，阿里巴巴等付款方式。

Q:How about the after sales?
A: Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the
specific situation. If the product still has a problem, it will be refunded or replaced for free.
